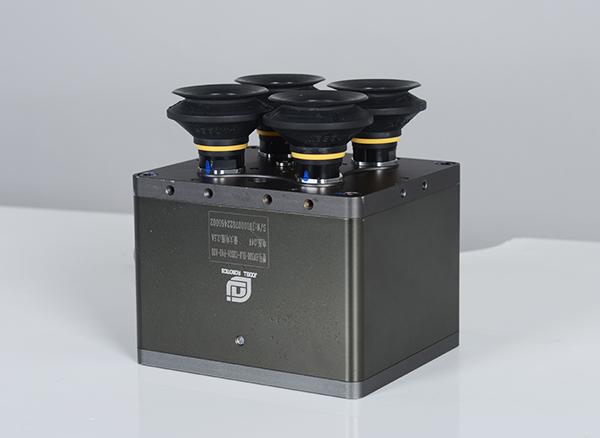

EVS08
The EVS series electric vacuum effector is simple to use, quick to install, and saves on air supply system costs. It can be controlled through programming and has an IP40 protection level, as well as functions such as power-off pressure maintenance, drop detection and gripping feedback.
Inquiry now

Specification

EVS08

Vacuum degree

5%~75%

Air flow rate

10L/min

Body weight

1.4kg

Maximum load

4kg

Communication protocol

RS485(MODBUS RTU), Digital I/O

Working voltage

24V DC±10%

Rated current

1A

Protection level

IP54

Suction/release time

0.4s/0.2s
