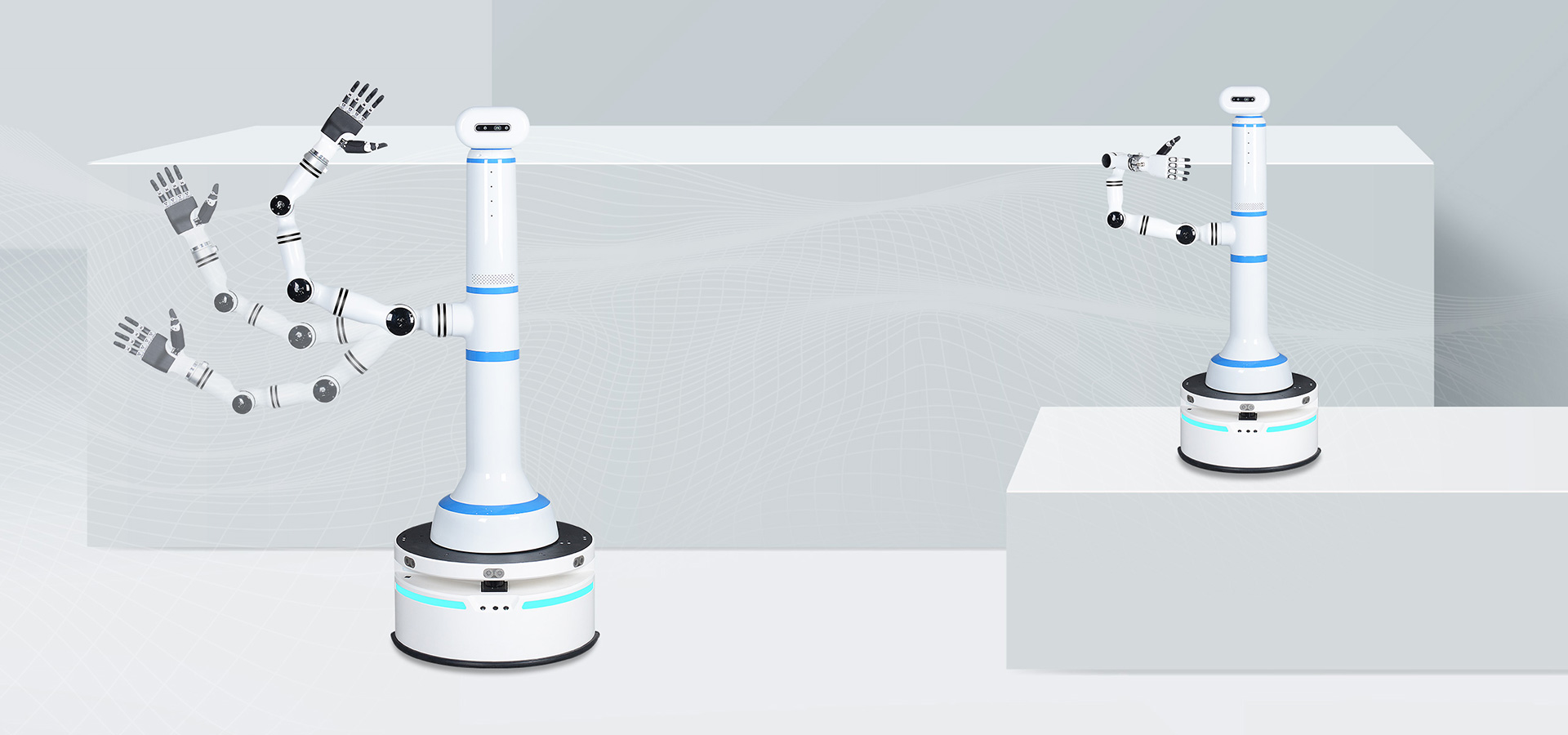

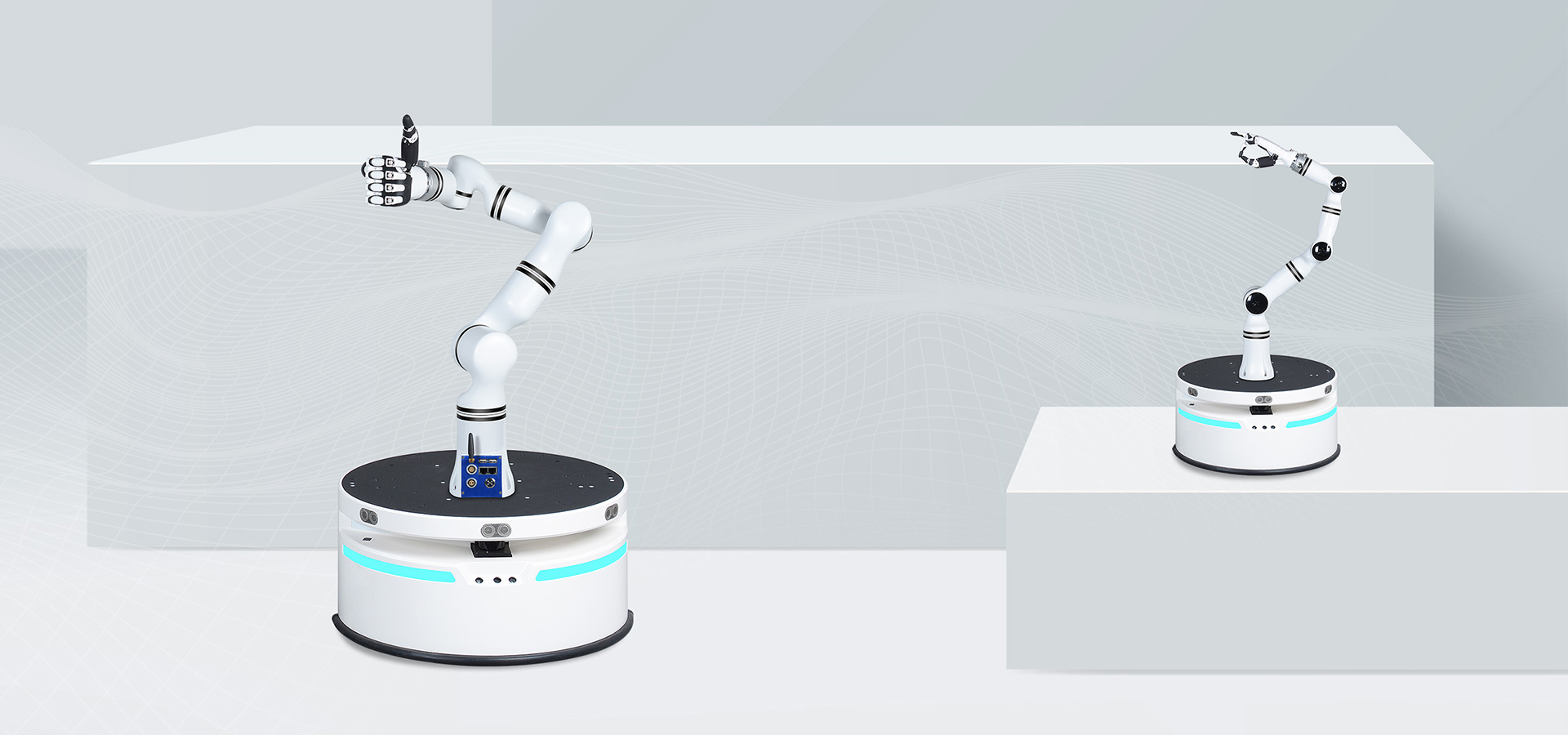

The compound robot is more refined, capable of adapting to environments of high complexity and precision, and has mobility, autonomy, and cooperation. It can complete the moving of materials, as well as join the production line to perform specific processing operations for specific types of work, which is something that non-standard automation equipment cannot do.
Model | — | |
Platform size | Total height 1355 mm | |
Weight | About 53 kg | |
Charging power supply | Single-phase three-wire 220V ± 10% 50Hz | |
Working voltage | DC24V | |
Positioning accuracy | <±5cm | |
Security protection | Functions of laser scanning obstacle avoidance, visual obstacle avoidance, force sensors, etc. | |
Security protection | Network interface, USB interface, HDMI | |
Working environment | Temperature -10°C to +40°C, relative humidity≤85% (25°C), altitude＜4000m | |
Voice module | — | |
Effective lifting distance | — | |
Moving speed | 1m/s | |
Lifting speed | — | |
Main control module | GPU | 128-core Nvidia Maxwell |
| CPU | 4-core A57@1.43GHz | |
Memory | 4G 64位 | |
Operating system | Ubuntu18.04 | |
Number of network interfaces | 1 | |
Number of USB3.0 interfaces | 4 | |
Number of USB2.0 interfaces | 2 | |
Other interfaces | GPIO、I2C、SPI、UART、I2S | |
Size | 100mm*80mm*29mm | |
