Rm75-b-Realman

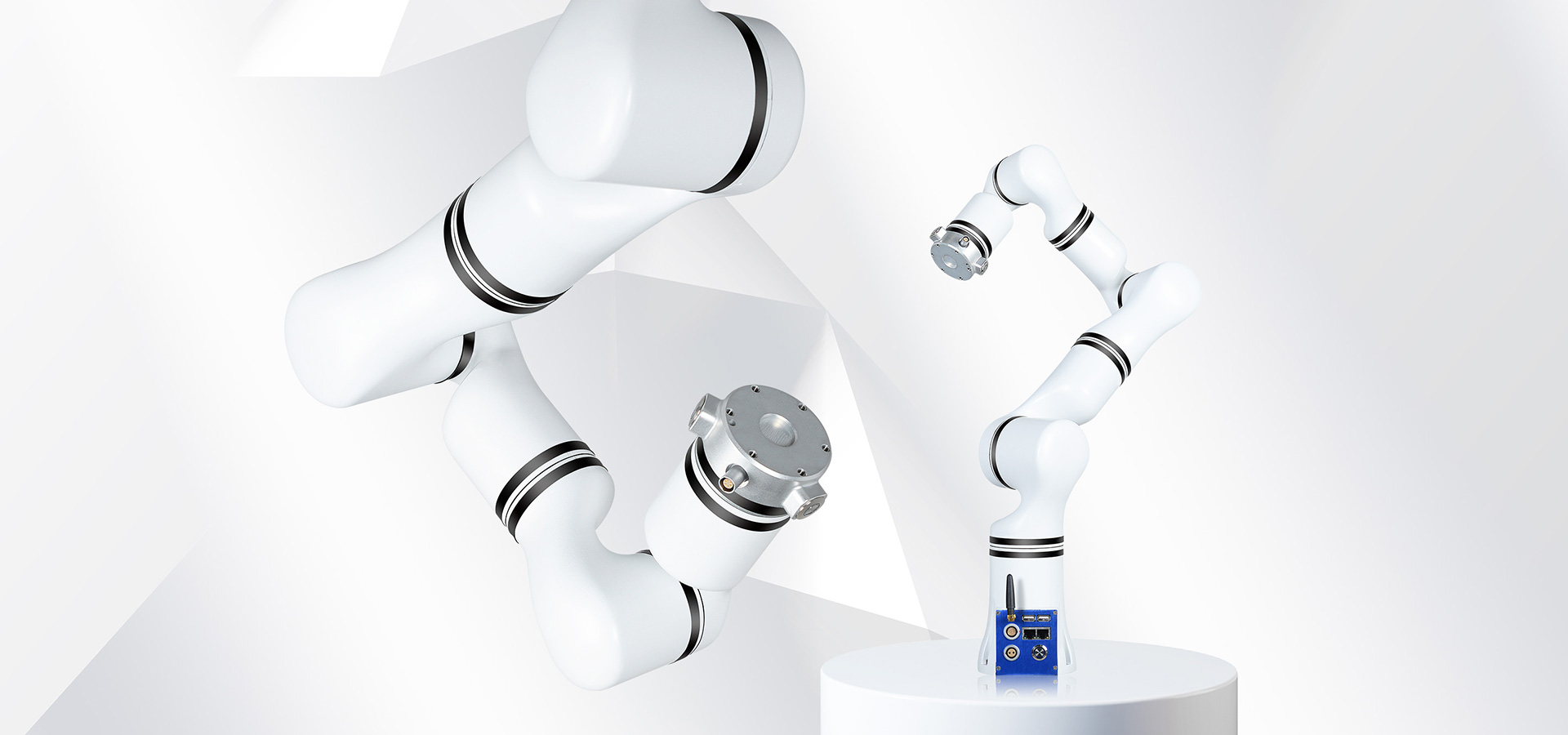

The RM75-B, a basic version of the 7-dof robotic arm, is self-developed and produced by RealMan. The robotic arm integrating the controller weighs 7.8KG in total, with a payload of 5KG, a peak load of 9KG, and a working radius of 610mm.

Request A Free Quote

Specification

RM75-B

Degree of freedom	7
Payload	5kg
Body weight	7.8kg
Repeatability	±0.05mm
Working radius	610mm
Power supply voltage	DC24V
Power consumption	Maximum power consumption 200W, comprehensive power consumption 100W
Protection level	IP54 (robotic arm body)
Material	Aluminum alloy
Controller	Integrated
Communication mode	WIFI/network port/Bluetooth/USB serial port/RS485
Control mode	Drag and drop teaching/Teaching pendant/API/JSON
Joint motion range	J1 ±178°、J2 ±130°、J3±178°、J4 ±135°、J5 ±178°、J6 ±128°、J7 ±360°
Joint maximum speed	J1-J2 180°/s、J3-J7 225°/s

Successful Cases

Download

RM75-B FAQ

Which industries have successfully used the RealMan robotic arm?

The RealMan robotic arm is now widely used in a variety of industries, including medical health, healthcare, intelligent inspection, automated laboratories, scientific research and education, new catering, new retail, home services, 3C transfer, logistics warehousing, industrial production, and agricultural harvesting, and there are corresponding successful cases.

What secondary development forms are supported by the robotic arm?

There are currently three forms of secondary development supported, one is through API, which currently supports four development environments: C\C++\C#\Python. The second is to control through the JSON protocol, which is unrestricted for the development language and system. The third is to control through ROS, which currently supports two versions: melodic and noetic.
