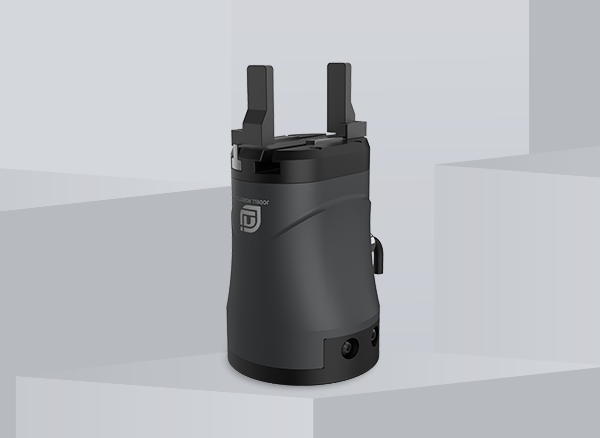

RG52-050
The ERG series is an electric rotating gripper with integrated drive and control, adjustable and controllable force, position, and rotation angle. It can rotate forward and backward infinitely and can also be used for networking applications. It also has functions such as drop detection and gripping feedback.
Inquiry now

Specification

RG52-050

Clamping force

2-50N

Total travel

0-52mm

Opening/closing time

0.5s

Body weight

0.85kg

Communication protocol

RS485(MODBUS RTU), Digital I/O

Position repeatability

±0.02mm

Working voltage

24V DC±10%

Rated current

0.4A

Protection level

IP54
