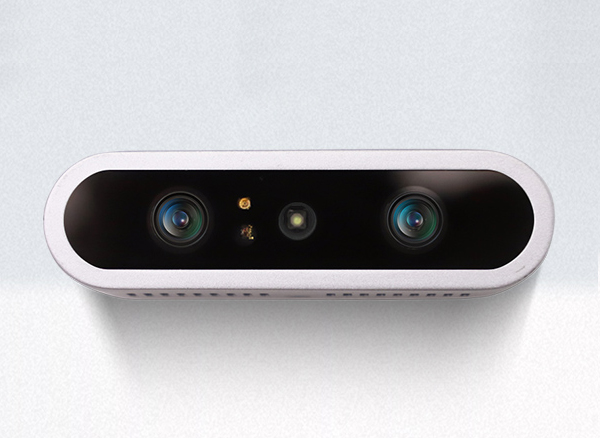

DaBai DCW
DaBai DCW is a binocular structured light camera with self-developed ASIC chips. It has lower computing power requirements, higher overall performance, high resolution, high frame rate, high precision depth data output and large field angle, allowing obstacle avoidance in a larger field of vision. Its depth image resolution can reach up to 1920 × 1080 @ 5/10 fps, and its average power consumption is less than 1.2 W, enabling robots to achieve perception, obstacle avoidance, navigation and other functions.
Inquiry now

Specification

DaBai DCW

Working distance

0.2m-2.5m

Depth FOV

H79° V62° D91° ± 3° Infrared FOV: H79° V62° D91° ± 3°

Infrared FOV

16:9 H86°V55°D93.5°±3°

Color FOV

4:3: H64°V55°

Relative accuracy

1.0%@1000mm 1.1%@2000mm

Size

89.82x25.10x25.10mm

Interface type

USB2.0

Power supply

5V
